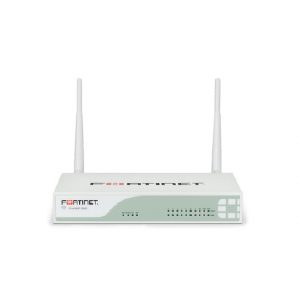

FWF-90D

Hardware specifications

GE RJ45 WAN Ports

2

GE RJ45 Switch Ports

14

GE RJ45 PoE Ports

–

FE RJ45 PoE Ports

–

GE SFP DMZ Slots

–

Wireless Interface

802.11 a/b/g/n

USB Ports (Client / Server)

2-Jan

Console (RJ45)

1

Internal Storage

32 GB

System Performance

Firewall Throughput (1518 / 512 / 64 byte UDP packets)

3.5 / 3.5 / 3.5 Gbps

Firewall Latency (64 byte UDP packets)

Firewall Throughput (Packets Per Second)

4 μs

Concurrent Sessions (TCP)

5.3 Mpps

New Sessions/Sec (TCP)

2 Million

Firewall Policies

4,000

IPsec VPN Throughput (512 byte packets)

5,000

Gateway-to-Gateway IPsec VPN Tunnels

1 Gbps

Client-to-Gateway IPsec VPN Tunnels

1,000

SSL-VPN Throughput

35 Mbps

Concurrent SSL-VPN Users (Recommended Maximum)

200

IPS Throughput

275 Mbps

Antivirus Throughput (Proxy Based / Flow Based)

35 / 65 Mbps

CAPWAP Clear-text Throughput (HTTP)

210 Mbps

Virtual Domains (Default / Maximum)

10-Oct

Maximum Number of FortiAPs (Total / Tunnel Mode)

32 / 16

Maximum Number of FortiTokens

100

Maximum Number of Registered FortiClients

200

High Availability Configurations

Active / Active, Active / Passive, Clustering

Dimensions

Height x Width x Length (inches)

1.72 x 9.2 x 8.78

Height x Width x Length (mm)

44 x 234 x 223

Form Factor

Desktop

Weight

3.5 lbs (1.6 kg)

Environment

Power Required

100–240V AC, 50–60 Hz

Maximum Current

110 V / 1.5 A, 220 V / 0.75 A

Total Available PoE Power Budget

Power Consumption (Average / Maximum)

21 / 25 W

Heat Dissipation

85 BTU/h

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

20–90% non-condensing

Operating Altitude

Up to 7,400 ft   (2,250 m)

Compliance

FCC Part 15 Class B/A, C-Tick, VCCI, CE, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
