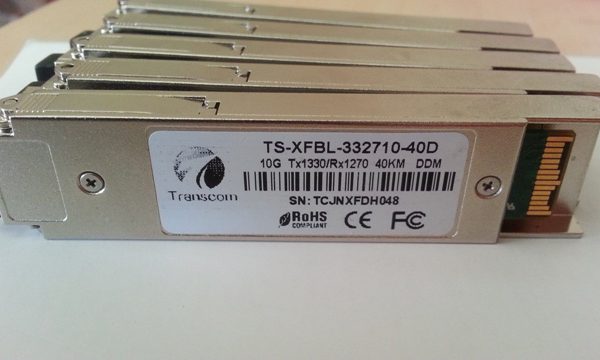

Module quang Transcom TS-XFBL-332710-40D

Distance:	40KM	Operating Temperature:	-5 ºC~70ºC
Wavelength:	1330nm	Connector:	LC

APPLICATIONS

l 10GBASE-BX 10.3125Gb/s Ethernet

l 10GBASE-BX 9.953Gb/s Ethernet

l SONET OC-192 SR-1 SDH STM I-64.1

PRODUCT DESCRIPTION

TS-XFBL-332710-40D is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 11.3Gb/s, it designed to be compliant with XFP MSA. The module data link up to40km in 9/125um single mode fiber.The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

Absolute Maximum Ratings

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Storage Temperature	Ts	-40	–	85	ºC
Storage Ambient Humidity	HA	5	–	95	%
Operating Relative Humidity	RH	–	–	85	%
Power Supply Voltage	VCC	-0.3	–	4	V
Signal Input Voltage	VCC	Vcc-0.3	–	Vcc+0.3	V

Recommended Operating Conditions

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Case Operating Temperature	Tcase	-5	–	70	ºC	Without air flow
Power Supply Voltage	VCC	3.14	3.3	3.47	V
Power Supply Current	ICC	–	–	450	mA
Data Rate	BR	9.95	10.3125	11.3	Gbps
Transmission Distance	TD		–	40	km	Note (1)
Coupled fiber	Single mode fiber

Note: Measured with SMF

Electrical Interface Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Total power supply current	Icc	–	–	350	mA
Transmitter
Differential Data Input Voltage	VDT	120	–	820	mVp-p
Differential line input Impedance	RIN	85	100	115	Ohm
Transmitter Fault Output-High	VFaultH	2.4	–	Vcc	V
Transmitter Fault Output-Low	VFaultL	-0.3	–	0.8	V
Transmitter Disable Voltage- High	VDisH	2	–	Vcc+0.3	V
Transmitter Disable Voltage- low	VDisL	-0.3	–	0.8	V
Receiver
Differential Data Output Voltage	VDR	300	–	850	mVp-p
Differential line Output Impedance	ROUT	80	100	120	Ohm
Receiver LOS Pull up Resistor	RLOS	4.7	–	10	KOhm
Data Output Rise/Fall time	tr/tf	20	–	–	ps
LOS Output Voltage-High	VLOSH	2	–	Vcc	V
LOS Output Voltage-Low	VLOSL	-0.3	–	0.4	V
