Router Cisco 3945/K9

Cisco 3945 Router w/SPE150(3GE,4EHWIC,4DSP,4SM,256MBCF,1GBDRAM,IPB)

94,500,000.00 ₫

Mô tả

Mô tả

Overview (CISCO3945/K9)

The Cisco 3945 router, modular Services Performance Engine (SPE) 150, which can be upgraded for even higher performance as next-generation WAN environments evolve.

Quick Specs

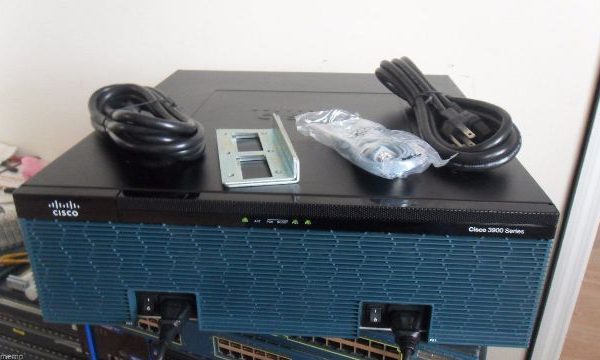

Figure 1 shows the appearance of the CISCO3945/K9.

CISCO3945/K9

Table 1 shows the Quick Specs of the CISCO3945/K9.

Product Code	CISCO3945/K9
Services Performance Engine module	w/SPE 150
Rack Units	3U
Interfaces	3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity
Expansion Slot(s)	4 service module slots 1 Internal Services Module slot 4 onboard digital signal processor (DSP) slots 4 Enhanced High-Speed WAN Interface Card (EHWIC) slots
RAM	1 GB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
Dimensions	47.6 cm x 43.8 cm x 13.3 cm
Package Weight	21.84 Kg

Product Details

Figure 2 shows the front panel of the Cisco 3945 router.

CISCO3945/K9 Front Panel

Note:

① On/Off switch ② Power connector ③ LEDs area

Table 2 shows the LEDs area description.

LED	Description
SYS status LED	Solid green	Solid green indicates normal operation.
	Blinking green	System is booting or is in ROM monitor mode.
	Amber	System error.
	Off	Power is off or system board is faulty.
ACT status LED	Solid or blinking green	Solid or blinking indicates packet activity between the forwarding and routing engine and any I/O port.
ACT status LED	Off	No packet transfers are occurring.
POE	Green	IP phone power is on.
POE	Amber	IP phone power is not on.
PS1 / PS2	Green	System is running.
PS1 / PS2	Amber	System is not running.

Figure 3 shows the back panel of the Cisco router 3945/K9 with LEDs.

CISCO3945/K9 Back LED

Note:

① Compact flash 0 and 1 (0, right) ② ISM ③ PVDM3 0,1,2 and 3 (0, far right) ④ EN (Enable USB console)

⑤ EN (Enable RJ-45 console)⑥ SFP S ⑦ SFP EN ⑧ S (Speed) ⑨ L (Link)

Table 3 shows the description of these LEDs on the back panel.

LED	Color	Description	Location
CompactFlash 1	Green	Flash memory is busy.	Back Panel
	Amber	Initialized with error.
	Blinking Green then turns off	CompactFlash is ready for removal.
CompactFlash 0	Green	Flash memory is busy.	Back Panel
	Amber	Initialized with error.
	Blinking Green then turns off	CompactFlash is ready for removal.
S (Speed)	1 blink + pause	GE port operating at 10 Mb/s.	Back Panel
	2 blink + pause	GE port operating at 100 Mb/s.
	3 blink + pause	GE port operating at 1000 Mb/s.
L (Link)	Green	GE link is established.	Back Panel
L (Link)	Off	No GE link is established.	Back Panel
EN (RJ-45 console port)	Green	The RJ-45 console port is active.	Back Panel
EN (USB serial console port)	Green	The USB console port is active.	Back Panel
ISM	Green	Initialized.	Back Panel
	Amber	Initialized with error.
	Off	Not installed.
PVDM3 0,1,2 and 3	Green	PVDM is initialized.	Back Panel
	Amber	PVDM is detected but not initialized.
	Off	No PVDM installed.
SFP S	Blinking green	Blinking frequency indicates port speed.	Back Panel
SFP EN	Off	Not present.	Back Panel
	Green	Present and enabled.
	Amber	Present with failure.

Figure 4 shows the back panel of the Cisco 3945 router with slots and ports.

CISCO3945/K9 Back Slot

Hàng New 100%, Bảo hành 12 Tháng.
